Zimmerman Machine, Inc.

Capabilities

Our state-of-the-art machine shop highlights some of the best machinery around. We have multiple machines in each category, and highly skilled personnel to operate those machines. Our personnel utilize these machines to ensure the customer receives their products and parts in a timely manner.

Our equipment includes:

•  Wide array of CNC machines that can handle small and large parts in varying quantities and a variety of materials.
• High-speed turning equipment with axial and radial milling and drilling capability
•  An automated saw to keep pace with our raw material demands.

We also have:

•  Large inventory of raw materials
•  DC Morrison Keyseater- capability for 1-1/4 inch wide Internal Keyways
• Grit blast finish capability
•  Certified welders capable of full welding and fabrication including TIG, MIG, Arc and plasma cutting
• General sheet metal and other fabrication tools utilized including bandsaws, sheet metal break and ironworkers
• Our CNC programmers are trained routinely using the latest programming software
• We can also handle simple or complex fixture design, all completed on-site for faster turn-around time.

MACHINES

Vertical CNC Mills

• (4)      Doosan DNM5700
  • Travels       41” X 22” X 20” (X, Y, Z)
• (1)      Doosan DNM400
  • Travels       30” X 16” X 20” (X, Y, Z)
• (1)      Doosan DNM4500
  • Travels       31.49” X 17.71” X 20.1” (X, Y, Z)
• (1)      Doosan DNM750
  • Travels       64.2” X 30.0” X 25.6” (X, Y, Z)
• (1)     DN Solutions DNM750L
  • Travels 85" X 30" X 25.6"
• (1)      ProtoTrak DPMRX5 Bedmill
• (1)      Bridgeport Manual Mill updated with a ProtoTrak SMX CNC Control
• (1)      Bridgeport Manual Mill updated with a ProtoTrak EMX CNC Control
• (1)      NHP-500 Horizontal Milling Machine with 6 Station Pallet Pool

CNC Lathes

• (1)      Doosan Lynx 220LY
  • Live       tooling + Y-axis capabilities
  • 8”       Chuck
• (1)      Doosan Lynx 2100LY
  • Live       tooling + Y-axis capabilities
  • 8”       Chuck
• (1)      Lynx2100
  • 8”       Chuck
• (1)      Doosan Lynx2100L54B
  • Dual       Spindle
  • Live       Tooling +Y – Axis Capabilities
  • 8”       Chuck
• (1)      ProtoTrak CNC Lathe
  • TRL       1845 SX
  • 18”       Swing
  • 45”       between centers

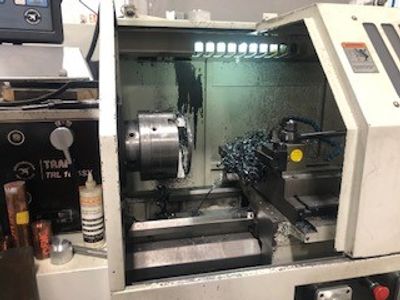

• (1)      ProtoTrak CNC Lathe
  • TRL       1630 SX
  • 16”       Swing
  • 30”       between Centers
• (1)      ProtoTrak CNC Lathe
  • TRL       30120 RX
  • 34”       Swing (21” over cross slide)
  • 120”       between centers
• (1)      Trak-2470RX
  • 24”       Swing
  • 70”       Between Centers

Manual Mills

• (1)      Bridgeport Manual Milling Machine
• (1)      Knight Jig Bore 12” X 32” Milling Machine

Manual Lathes

• (1)      Monarch Heavy Duty Geared Head Lathe
  • 20”       Swing
  • 78”       between Centers
• (1)      Monarch 10EE Tool Room Lathes

Surface Grinding

• Brown      & Sharp 612 Valumaster

Fabrication Equipment

• Miller      Bobcat 225 Gas Powered Tig/Stick Welder/ Generator
• (2) Miller      252 Mig Welder
• Miller      Big Blue 400 Air Pak
  • Diesel       Powered Welder
  • Built       in Rotary Screw Compressor
• (2) Miller      211 Mig Welder
• (1) Miller      Syncrowave 250 DX Tig/ Stick Welder
• (2) Miller      Max Star 150 Tig/Stick Welder
• Marvel      SIW1260 126 Ton Dual Operator Iron Worker
• Hypotherm      PowerMax 45 XP Plasma Cutter
• Hypotherm      Powermax 105 Plasma
• (2)      Miller Dynasty 350 -Liquid Cool Tig/ Stick Welder

Saws

• Marvel      Spartan Series PA10/3
• Automatic      Horizontal Saw- Cosen SH-500M Horizontal Band Saw
• Crob      Vertical Band Saw
• Wilton      Roll in Saw
• Behringer      HBE321A CNC Programmable Horizontal Band Saw

Miscellaneous Equipment

• DC      Morrison Keyseater
• Sterling      Drill bit Sharpener
• Miscellaneous      Drill Presses
• KR      Wilson 50 Ton Hydraulic Press
• (2) 20”      Disc Sander
• Spanco      Crane
  • Dual       overhead, bridge Crane
• Ee Zee      Wrapper 8420 Machine
• Shop Saber 5 X10 Plasma Table
• 8’ 16      Guage Sheel Metal Hand Brake
• 10’ 16      Gauge Sheet Metal Hydraulic Sheer
• Fowler      CMM
  • Aberlink       Axiom CNC CMM 1200MM X 640MM
  • Fully       Programmable Coordinate Measuring Machine
